FLS15 & FLS15-ST HYDRAULIC FLANGE SPREADERS

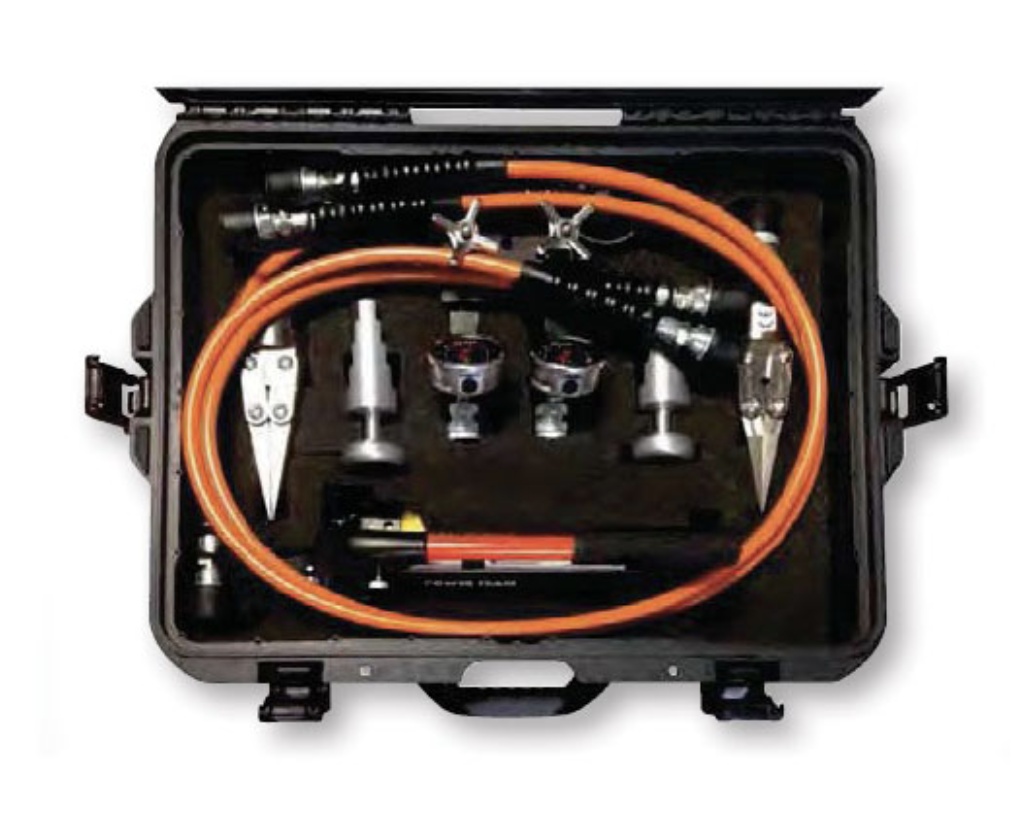

Anyone who has worked with a hydraulic flange spreader knows the difference one makes. Our FLS15 and FLS15-ST models are built for pipe and flange repair, and they also handle elbow removal, gasket and metal seal replacement on couplers, heavy equipment maintenance, and plenty of other jobs. They generate up to 15 metric tons of force, weigh just 7 lbs., and their ergonomic design makes them easy to operate. Both kits are available to rent or buy.

Features

  • 33,000 pound (15 metric ton) wedge driven spreader
  • Jaws fully supported by wedge for excellent durability
  • Low friction provided by the heavy-duty extended-life lubricant
  • Ideal for flanges with narrow gaps – only .2 inches (5 mm) required for entry
  • Very high strength due to special alloy used
  • Compact and lightweight design – only 9.9 inches (252 mm) long at a weight of 7 pounds (3.2 kg)
  • Easy to use – ergonomically balanced handle (optional)
  • Suitable for the offshore environment due to superior corrosion resistance
  • Quick adjustments for various tasks due to interchangeable shoes (both stepped and serrated)
  • Easy and quick maintenance – no special tools required
  • Includes female half coupler – mates to standard 3/8″ male half coupler (9798)

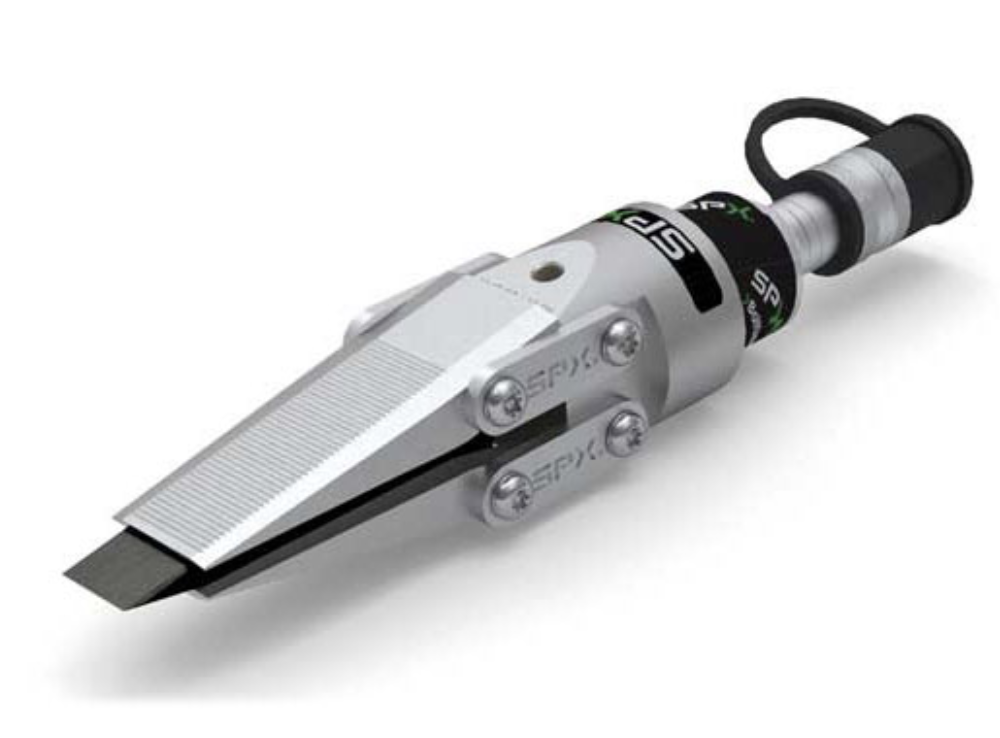

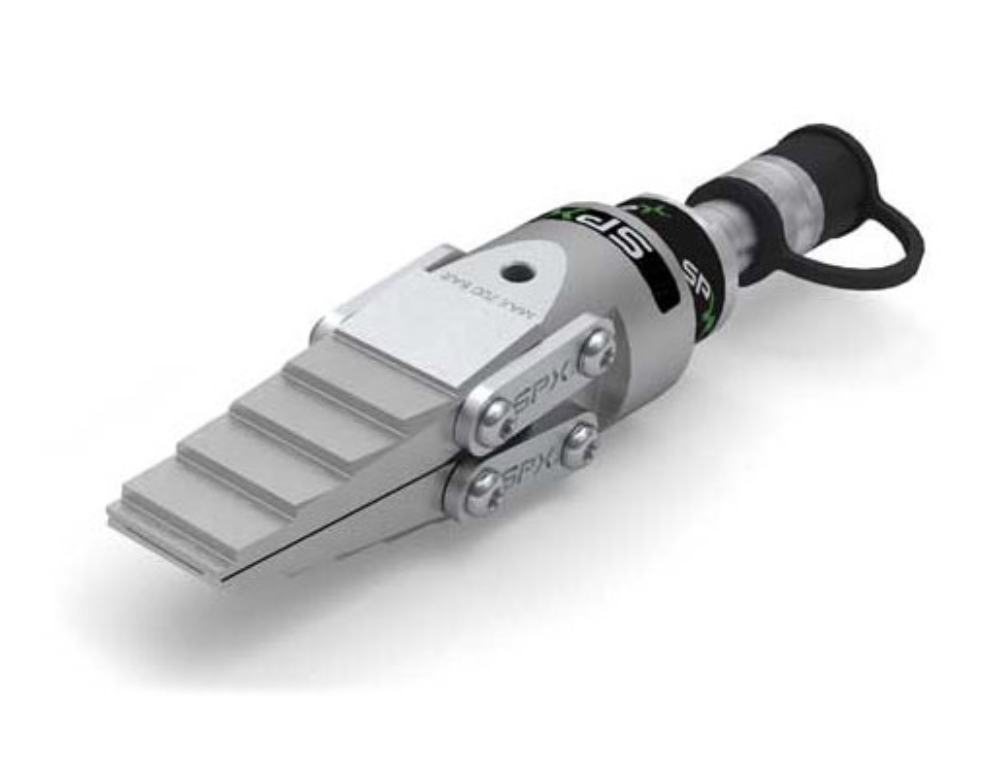

  • Both serrated- and stepped-shoe versions are available

‍

Hydraulic Flange Spreaders FLS15 & FLS15-ST

This hydraulic flange spreader operates using the integrated wedge concept. It is ideal for creating space for flange surface cleaning and repair, and for gasket replacement. The spreader is single-acting and should be used with a hydraulic pump capable of holding pressure. The maximum operating pressure is 10,000 psi (700 bar).

‍

Spreading force:

Maximum 33,000 pounds (15 metric tons) per tool at 10,000 psi (700 bar). It is recommended that the tools be used in pairs, providing a maximum combined force of 66,000 pounds (30 metric tons).

‍

Typical Applications:

  • Pipe and flange repair
  • Removing elbows
  • Removing elbows
  • Heavy equipment maintenance

‍

Features

  • 33,000 pound (15 metric ton) wedge driven spreader
  • Jaws fully supported by wedge for excellent durability
  • Low friction provided by the heavy-duty extended-life lubricant
  • Ideal for flanges with narrow gaps – only .2 inches (5 mm) required for entry
  • Very high strength due to special alloy used
  • Compact and lightweight design – only 9.9 inches (252 mm) long at a weight of 7 pounds (3.2 kg)
  • Easy to use – ergonomically balanced handle (optional)
  • Suitable for the offshore environment due to superior corrosion resistance
  • Quick adjustments for various tasks due to interchangeable shoes (both stepped and serrated)
  • Easy and quick maintenance – no special tools required
  • Includes female half coupler – mates to standard 3/8″ male half coupler (9798)
  • Both serrated- and stepped-shoe versions are available

‍

Hydraulic Flange Spreaders FLS15 & FLS15-ST

This hydraulic flange spreader operates using the integrated wedge concept. It is ideal for creating space for flange surface cleaning and repair, and for gasket replacement. The spreader is single-acting and should be used with a hydraulic pump capable of holding pressure. The maximum operating pressure is 10,000 psi (700 bar).

‍

Spreading force:

Maximum 33,000 pounds (15 metric tons) per tool at 10,000 psi (700 bar). It is recommended that the tools be used in pairs, providing a maximum combined force of 66,000 pounds (30 metric tons).

‍

Typical Applications:

  • Pipe and flange repair
  • Removing elbows
  • Removing elbows
  • Heavy equipment maintenance

‍
